Multiwall or twin-wall polycarbonate sheet combines high light transmission, thermal insulation and weather resistance. Easy to install, lightweight and impact resistant, it is manufactured with a UV protected layer which is fused homogenously with the sheet metal.

The UV protected layer which imparts protection against weathering for 10 years is installed facing upwards/outwards. This sheet is ideally used as a load-free panel. In case of other load bearing structures, it is advisable to use sheets of greater thicknesses.

Ultralite® polycarbonate twin wall polycarbonate sheet is a basic type with light weight, you can also call it double wall polycarbonate panels. Ultralite® twin wall polycarbonate panels have another feature, UV resistant of two sides which greatly help to extend service life.

Typical Application

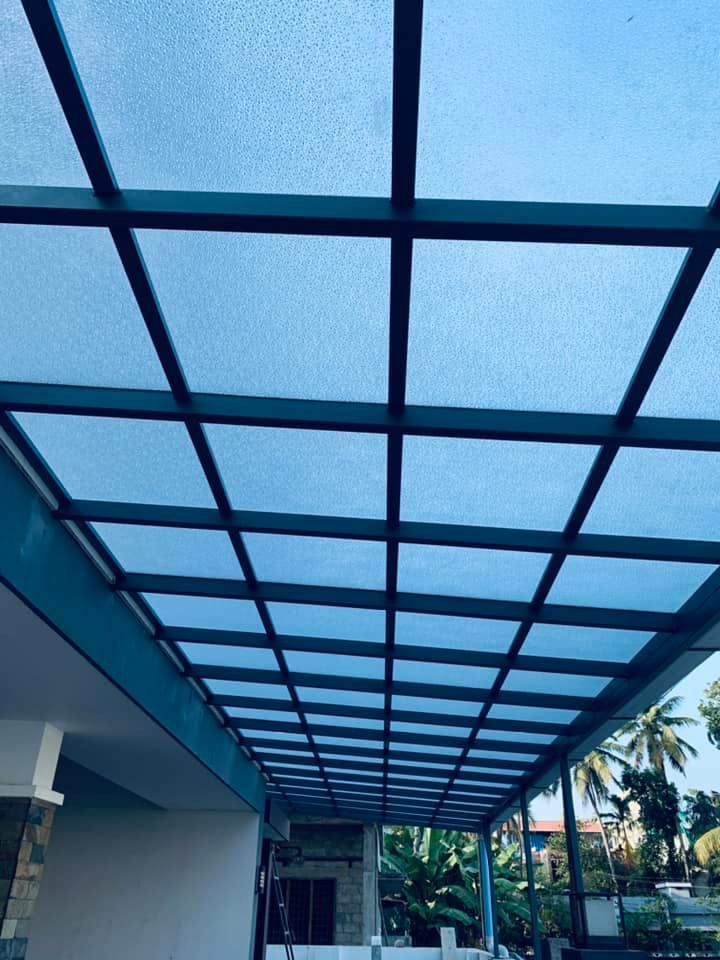

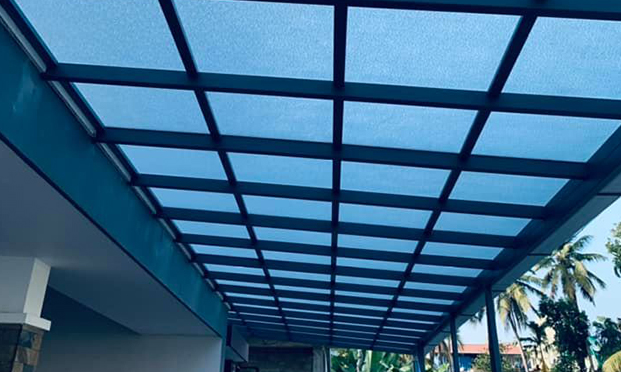

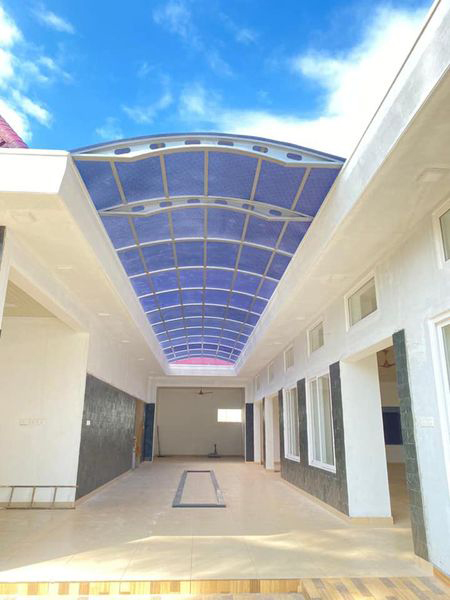

  • Roofing light sheet and sunshade for building

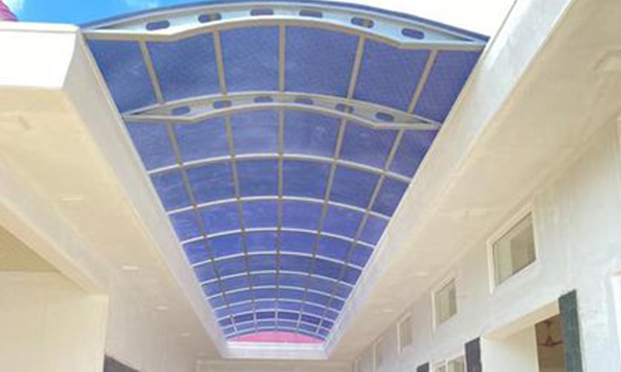

  • Skylight, lighting for corridors, balcony, passages, and Subway entries, walkways.
  • Conservatories, agricultural greenhouse, zoos, botanical gardens.
  • Industrial roofing and glazing
  • Natatorium Swimming pools roofing/cover/sheet

Features

  • Light weight
  • High impact strength
  • High light transmission
  • Good weather resistance and UV protection
  • High heat insulation
  • Simply processed and installed
SKYLITE ROOFINGS

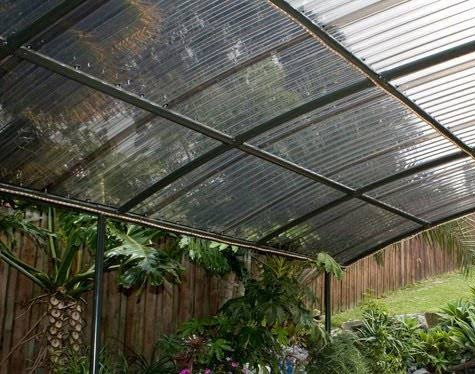

IR-Multiwall

Ultralite® IR-Transparent multiwall polycarbonate sheet with Cool Light Technology designed to block heat transmitting Infra-Red solar energy cleverly reducing heat build-up by up to 7˚C..

TYPICAL APPLICATIONS

  • Roof lights
  • Canopies
  • Conservatories
  • Vertical Glazing
  • Reduce Heat build-up up to 7˚C

Multiwall Polycarbonate Sheet Standard Size

SKYLITE ROOFINGS

How To Install Multiwall Polycarbonate Sheet

SKYLITE ROOFINGS

Multiwall Polycarbonate Sheet Standard Size

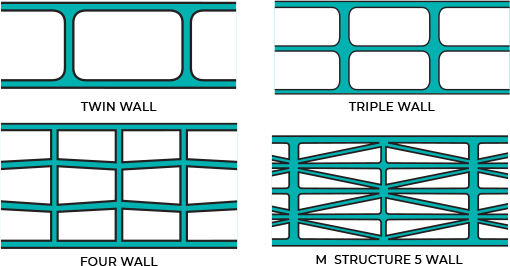

MW PC Sheet Profile

Thickness (mm)

Width - Length (mm)

Colors

2 Wall - Rectangular

4

1220 x 11800
2100 x 11800

Clear, Opal, Bronze, Green, Blue, Metallic Grey

2 Wall - Rectangular

6

2 Wall - Rectangular

8

2 Wall - Rectangular

10

3 Wall - Rectangular

16

3 Wall - Rectangular

20

4 Wall - Rectangular

8

4 Wall - Rectangular

10

5 Wall - Rectangular

25

5 Wall - Rectangular

32

5 Wall - Rectangular

40
